What are the key lymph node levels in the head and neck region. How do these lymph nodes relate to various anatomical structures and potential pathologies. Why is understanding lymph node anatomy crucial for diagnosing and treating head and neck conditions.

Содержание

Anatomy and Overview of Head and Neck Lymph Nodes

The head and neck region contains a complex network of over 300 lymph nodes and associated lymphatic channels. This intricate system plays a crucial role in immune function and can provide valuable diagnostic information in various pathological conditions. Understanding the anatomy and drainage patterns of these lymph nodes is essential for healthcare professionals involved in diagnosing and treating head and neck disorders.

The lymphatic system in this region is strongly lateralized, meaning that under normal circumstances, there is minimal direct communication between the left and right sides. Lymphatic drainage typically follows a path from the base of the skull down through the jugular chain, which runs alongside the internal jugular vein. From there, lymph can either flow into the spinal accessory chain near cranial nerve XI or proceed to the supraclavicular chain.

Ultimately, lymph drains into the venous system, but the exact pathway differs between the left and right sides of the body. On the left side, drainage occurs either directly into the jugulo-subclavian venous confluence or into the thoracic duct. On the right side, lymph typically empties into the right lymphatic duct.

Key Features of Head and Neck Lymphatic Drainage

Over 300 lymph nodes present
Strong lateralization with minimal crossover
Drainage follows jugular, spinal accessory, and supraclavicular chains
Different terminal drainage pathways for left and right sides
Most structures drain ipsilaterally, with some midline exceptions

Are there structures that drain bilaterally? Yes, certain midline structures in the head and neck region can drain to lymph nodes on both sides of the body. These include:

Nasopharynx
Pharyngeal wall
Base of the tongue
Soft palate
Larynx

Classification of Neck Lymph Node Levels

To facilitate precise communication and standardize clinical approaches, the lymph nodes of the neck are classified into specific levels. This system is crucial for describing the location of pathological findings, guiding surgical interventions, and planning radiotherapy treatments. The classification includes levels Ia, Ib, II, III, IV, V, VI, VII, VIII, IX, and X.

Level Ia: Submental Group

The submental lymph nodes are located in a triangular region known as the submental triangle. These nodes are bounded by the following structures:

Superior: Symphysis menti (chin)
Inferior: Hyoid bone
Anterior: Platysma muscle
Posterior: Mylohyoid muscles
Lateral: Anterior belly of the digastric muscle (on each side)
Medial: Virtual anatomic midline

What areas drain to the submental lymph nodes? The submental group receives lymphatic drainage from:

Skin of the mental region (chin)
Mid-lower lip
Anterior portion of the oral tongue
Floor of the mouth

In the context of malignancies, the submental nodes are most commonly associated with metastases from cancers originating in:

Floor of the mouth
Anterior oral tongue
Mandibular alveolar ridge
Lower lip

Level Ib: Submandibular Group

The submandibular lymph nodes occupy the submandibular triangle, which is defined by the following boundaries:

Superior: Mylohyoid muscle
Inferior: Hyoid bone
Anterior: Symphysis menti
Posterior: Posterior edge of the submandibular gland
Lateral: Inner surface of the mandible
Medial: Digastric muscle

What structures drain to the submandibular lymph nodes? This group receives lymphatic drainage from a wide range of areas, including:

Efferent lymphatics from level Ia
Lower nasal cavity
Hard and soft palates
Maxillary and mandibular alveolar ridges
Skin and mucosa of the cheek
Upper and lower lips
Floor of the mouth
Anterior oral tongue

In terms of malignancies, the submandibular nodes are commonly involved in metastases from:

Oral cavity cancers
Anterior nasal cavity tumors
Soft tissue malignancies of the mid-face
Submandibular gland cancers

The Upper Jugular Group: Level II Lymph Nodes

Level II lymph nodes mark the beginning of the jugular chain and are often referred to as the upper jugular group. These nodes play a critical role in the lymphatic drainage of various head and neck structures and are frequently involved in metastatic spread of malignancies in this region.

Anatomical Boundaries of Level II

The level II lymph nodes are located within specific anatomical boundaries:

Superior: Base of the skull
Inferior: Inferior border of the hyoid bone
Anterior: Stylohyoid muscle
Posterior: Posterior border of the sternocleidomastoid muscle
Medial: Medial aspect of the internal carotid artery

It’s important to note that Level II is further subdivided into Level IIa and Level IIb, separated by the spinal accessory nerve.

Lymphatic Drainage to Level II

Which structures drain to the upper jugular lymph nodes? Level II receives lymphatic drainage from numerous areas, including:

Oral cavity
Nasal cavity
Nasopharynx
Oropharynx
Larynx
Parotid gland
Submandibular gland

Are there specific malignancies associated with Level II node involvement? Yes, these nodes are commonly affected in cases of:

Oral cavity cancers
Oropharyngeal cancers
Laryngeal cancers
Nasopharyngeal carcinomas
Salivary gland malignancies

Level III and IV: Middle and Lower Jugular Groups

Continuing down the jugular chain, we encounter the Level III and Level IV lymph nodes, also known as the middle and lower jugular groups, respectively. These nodes are crucial in the lymphatic drainage of the head and neck and are often involved in the metastatic spread of various malignancies.

Level III: Middle Jugular Group

The anatomical boundaries of Level III are as follows:

Superior: Inferior border of the hyoid bone
Inferior: Inferior border of the cricoid cartilage
Anterior: Lateral border of the sternohyoid muscle
Posterior: Posterior border of the sternocleidomastoid muscle

What areas drain to the Level III lymph nodes? These nodes receive lymphatic drainage from:

Base of tongue
Tonsils
Larynx
Hypopharynx
Thyroid gland

Level IV: Lower Jugular Group

The Level IV lymph nodes are bounded by:

Superior: Inferior border of the cricoid cartilage
Inferior: Clavicle
Anterior: Lateral border of the sternohyoid muscle
Posterior: Posterior border of the sternocleidomastoid muscle

Which structures primarily drain to Level IV nodes? This group receives lymphatic drainage from:

Hypopharynx
Cervical esophagus
Larynx
Thyroid gland

Are there specific malignancies commonly associated with Level III and IV node involvement? Yes, these levels are frequently affected in cases of:

Laryngeal cancers
Hypopharyngeal cancers
Thyroid cancers
Advanced stage oral cavity and oropharyngeal cancers

Level V: Posterior Triangle Group

The Level V lymph nodes, also known as the posterior triangle group, are located in the posterior neck region. This level is further subdivided into Va and Vb, separated by a horizontal plane at the inferior border of the cricoid cartilage.

Anatomical Boundaries of Level V

The posterior triangle group is defined by the following boundaries:

Superior: Junction of the sternocleidomastoid and trapezius muscles
Inferior: Clavicle
Anterior: Posterior border of the sternocleidomastoid muscle
Posterior: Anterior border of the trapezius muscle

Lymphatic Drainage and Clinical Significance

What areas primarily drain to the Level V lymph nodes? These nodes receive lymphatic drainage from:

Nasopharynx
Oropharynx
Skin of the posterior scalp and neck

In the context of malignancies, Level V nodes are often involved in:

Nasopharyngeal carcinomas
Oropharyngeal cancers
Cutaneous malignancies of the posterior scalp and neck
Thyroid cancers (particularly papillary thyroid carcinoma)

Level VI: Anterior Compartment Group

The Level VI lymph nodes, also referred to as the anterior compartment group, are located in the central region of the neck. These nodes are particularly important in the context of thyroid and laryngeal pathologies.

Anatomical Boundaries of Level VI

The anterior compartment group is defined by the following boundaries:

Superior: Hyoid bone
Inferior: Suprasternal notch
Lateral: Medial borders of the carotid sheaths on both sides

Lymphatic Drainage and Clinical Significance

Which structures primarily drain to the Level VI lymph nodes? This group receives lymphatic drainage from:

Thyroid gland
Larynx
Hypopharynx
Cervical trachea
Cervical esophagus

Are there specific malignancies commonly associated with Level VI node involvement? Yes, these nodes are frequently affected in cases of:

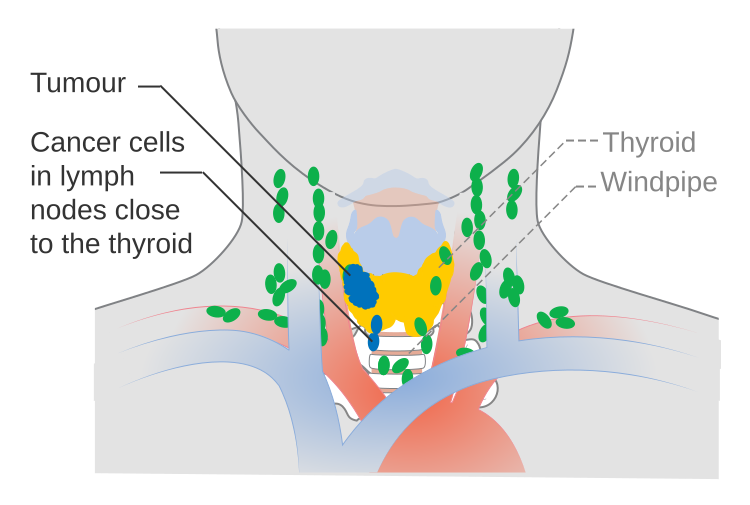

Thyroid cancers (particularly papillary and medullary thyroid carcinomas)
Laryngeal cancers
Advanced hypopharyngeal cancers
Subglottic laryngeal cancers

Clinical Importance of Lymph Node Knowledge in Head and Neck Pathologies

Understanding the anatomy and drainage patterns of head and neck lymph nodes is crucial for several reasons in clinical practice:

Diagnostic Significance

How does lymph node knowledge aid in diagnosis? A thorough understanding of lymph node anatomy allows clinicians to:

Accurately localize pathological findings during physical examinations
Interpret imaging studies more effectively
Guide the selection of appropriate diagnostic procedures, such as fine-needle aspiration or biopsy
Correlate lymph node involvement with potential primary sites of pathology

Staging of Malignancies

Why is lymph node status important in cancer staging? The presence and extent of lymph node metastases are critical factors in:

Determining the stage of head and neck cancers
Assessing prognosis
Guiding treatment decisions

Surgical Planning

How does lymph node anatomy influence surgical approaches? Detailed knowledge of lymph node levels is essential for:

Planning the extent of neck dissections in cancer surgery
Ensuring complete removal of at-risk lymph node groups
Preserving critical structures while achieving oncological goals

Radiation Therapy Planning

In what way does lymph node anatomy impact radiation treatment? Understanding lymph node levels is crucial for:

Defining target volumes in radiation therapy planning
Ensuring adequate coverage of at-risk nodal regions
Minimizing radiation exposure to critical structures

Follow-up and Surveillance

How does lymph node knowledge aid in post-treatment care? Familiarity with lymph node anatomy is important for:

Conducting thorough follow-up examinations
Interpreting post-treatment imaging studies
Early detection of regional recurrences

By mastering the intricacies of head and neck lymph node anatomy, healthcare professionals can significantly enhance their ability to diagnose, stage, treat, and monitor a wide range of head and neck pathologies, ultimately improving patient outcomes.

Anatomy, Head and Neck, Lymph Nodes – StatPearls

NCBI Bookshelf. A service of the National Library of Medicine, National Institutes of Health.

StatPearls [Internet]. Treasure Island (FL): StatPearls Publishing; 2023 Jan-.

StatPearls [Internet].

Show details

Search term

Antony Koroulakis; Zohaib Jamal; Manuj Agarwal.

Author Information and Affiliations

Last Update: December 11, 2022.

Introduction

The head and neck, as a general anatomic region, is characterized by a large number of critical structures situated in a relatively small geographic area. It is inclusive of osseous, nervous, arterial, venous, muscular, and lymphatic structures. Lymphadenopathy is a significant clinical finding associated with acute infection, granulomatous disease, autoimmune disease, and malignancy. The involvement of specific nodal groups is an indicator of pathologically-affected organs and tissues, especially in the context of malignancy. As such, intimate knowledge of the anatomic relationships of the lymphatic nodal levels and the structures they drain is critical in the delivery of appropriate therapy in many patients with cancers of the head and neck. This knowledge is especially crucial in guiding the approach to proper locoregional therapy, whether by surgery or irradiation. A detailed understanding of the principle lymphatic nodal levels of the neck is required, including their anatomical configuration and boundaries, patterns of drainage, and risk of metastatic involvement in the context of malignancy.

Blood Supply and Lymphatics

The head and neck contains a rich and elaborate lymphatic network of more than 300 nodes and their intermediate channels. Aponeuroses bind them together with the muscles, nerves, and vessels of the head and neck. These lymphatic chains are strongly lateralized and typically do not directly communicate between left and right in the absence of a pathologic process. This lymphatic drainage originates at the base of the skull, then proceeds to the jugular chain adjacent to the internal jugular vein. From there it moves into the spinal accessory chain adjacent to the spinal accessory nerve, or cranial nerve XI, and then meets the supraclavicular chain. The lymphatics then drain on both sides. On the left side, they drain either directly into the vasculature via the jugulo-subclavian venous confluence or directly into the thoracic duct. On the right side, they flow directly into the lymphatic duct. Conversely, most structures drain ipsilaterally, except in the case of structures situated at the anatomic midlines. These include the nasopharynx, pharyngeal wall, base of the tongue, soft palate, and larynx. The lymph nodes of the neck are further classified by level. These levels are Ia, Ib, II, III, IV, V, VI, VII, VIII, IX, X. [1][2][3][4][5]

Level Ia: Submental Group

Anatomy
- Level I nodes are those bounded by the mandible superiorly and laterally and by the hyoid bone inferiorly. Level Ia contains the submental nodal group, bounded superiorly by the symphysis menti and inferiorly by the hyoid bone. It is bounded anteriorly by the platysma muscle, posteriorly by the mylohyoid muscles, laterally by the anterior belly of the digastric muscle, and medially by the virtual anatomic midline. These boundaries form a triangular region also termed the submental triangle.
Drainage
- This group drains the skin of the mental region, or chin, the mid-lower lip, the anterior portion of the oral tongue, and the floor of the mouth.
Associated primary malignancies
- These nodes most often contain metastatic deposits from malignancies of the floor of the mouth, anterior oral tongue, mandibular alveolar ridge, and lower lip.

Level Ib: Submandibular Group

Anatomy
- Level Ib contains the submandibular nodal group, bounded superiorly by the mylohyoid muscle and inferiorly by the hyoid bone. It is bounded anteriorly by the symphysis menti, posteriorly by the posterior edge of the submandibular gland, laterally by the inner surface of the mandible, and medially by the digastric muscle. These boundaries form a triangular region also termed the submandibular triangle.
Drainage
- They drain the efferent lymphatics from level Ia, the lower nasal cavity, both the hard and soft palates, and both maxillary and mandibular alveolar ridges. They also drain them from the skin and mucosa of the cheek, both upper and lower lips, the floor of the mouth, and the anterior oral tongue.
Associated primary malignancies
- These nodes most often contain metastatic deposits from malignancies of the oral cavity, anterior nasal cavity, soft-tissues of the mid-face, and submandibular gland.

Level II: Upper Jugular Group

Anatomy
- Level II represents the beginning of the jugular chain. It contains the upper jugular nodal group, adjacent to the top third of the internal jugular vein (IJV) and upper spinal accessory nerve. It is bounded superiorly by the insertion of the posterior belly of the digastric muscle into the mastoid process, and inferiorly by the caudal border of the hyoid bone or alternatively, as a surgical landmark, the carotid bifurcation. It is bounded anteriorly by the posterior edge of the submandibular gland, posteriorly by the posterior edge of the sternocleidomastoid muscle (SCM), laterally by the medial surface of the SCM, and medially by the internal carotid artery and scalenus muscle.
Drainage
- This group drains the efferent lymphatics of the face, parotid gland, level Ia, level Ib, and retropharyngeal nodes. It receives direct drainage from the nasal cavity, the entire pharyngeal axis, larynx, external auditory canal, middle ear, and the sublingual and submandibular glands.
Associated primary malignancies
- These nodes most often contain metastatic deposits from malignancies of the nasal and oral cavities, nasopharynx, oropharynx, hypopharynx, larynx, and major salivary glands. It is the most commonly involved nodal level. [6][7][8][9][10]

Level III: Middle Jugular Group

Anatomy
- Level III contains the middle jugular nodal group, adjacent to the middle third of the IJV. It is bounded superiorly by the caudal border of the hyoid bone, and inferiorly by the caudal edge of the cricoid cartilage or alternatively, as a surgical landmark, the plan where the omohyoid muscle crosses the IJV. It is also bounded anteriorly by the anterior edge of the SCM, or the posterior third of the thyrohyoid muscle, and posteriorly by the posterior border of the SCM. Finally, it is bordered laterally by the medial surface of the SCM, and medially by the internal carotid artery and scalenus muscle.
Drainage
- This group drains the efferent lymphatics from level II and level V, and partially from the retropharyngeal, pretracheal, and recurrent laryngeal nodes. It receives direct drainage from the base of the tongue, tonsils, larynx, hypopharynx, and thyroid gland.
Associated primary malignancies
- These nodes most often contain metastatic deposits from malignancies of the oral cavity, nasopharynx, oropharynx, hypopharynx, and larynx. [11][12][13][14][15]

Level IVa: Lower Jugular Group

Anatomy
- Level IVa contains the lower jugular nodal group adjacent to the inferior third of the IJV. It is bounded superiorly by the caudal border of the cricoid cartilage, and inferiorly by a virtual level two centimeters superior to the sternoclavicular joint, based off surgical conventions of level IVa dissection. It is bounded anteriorly by the anterior edge of the SCM (more superiorly) and the body of the SCM (more inferiorly), and posteriorly by the posterior edge of the SCM (more superiorly) and the SM(more inferiorly. This group is also laterally bound by the medial edge of the SCM (more superiorly) and the lateral edge of the SCM (more inferiorly). Finally, it is medially bordered by the medial edge of the common carotid artery, the medial edge of the thyroid gland and scalenus muscle (more superiorly), and the medial edge of the SCM (more inferiorly).
Drainage
- This group drains the efferent lymphatics from levels III and V, and partially from the retropharyngeal, pretracheal, and recurrent laryngeal nodes. It receives direct drainage from the larynx, hypopharynx, and thyroid gland.
Associated primary malignancies
- These nodes most often contain metastatic deposits from malignancies of the hypopharynx, larynx, thyroid, cervical esophagus, and rarely, the anterior oral cavity. Deposits from the anterior oral cavity can manifest without proximal nodal involvement.

Level IVb: Medial Supraclavicular Group

Anatomy
- This nodal group is a continuation of level IVa to the superior edge of the sternal manubrium. It is bounded anteriorly by the deep surface of the SCM. Posteriorly, it is bound by the anterior edge of the scalenus muscle (more superiorly) and the lung apex, brachiocephalic vein, and artery on the right, as well as the common carotid and subclavian arteries on the left (more inferiorly). It is bounded laterally by the lateral edge of the scalenus muscle, and medially by the medial border of the common carotid artery which is also adjacent to level VI.
Drainage
- This group drains the efferent lymphatics from levels IVa and Vc, and partially from the pretracheal and recurrent laryngeal nodes. It receives direct drainage from the larynx, trachea, hypopharynx, esophagus, and thyroid gland.
Associated primary malignancies
- These nodes most often contain metastatic deposits from malignancies of the hypopharynx, subglottic larynx, trachea, thyroid, and cervical esophagus.

Level Va and Vb: Posterior Triangle Group

Anatomy
- These nodal groups are contained with the posterior triangle. They are situated posteriorly to the SCM, and adjacent to the inferior portion of the spinal accessory nerve and transverse cervical vessels. It is bounded superiorly by the superior edge of the hyoid bone and inferiorly by a virtual plane crossing the transverse vessels. It is bound anteriorly by the posterior margin of the SCM, and posteriorly by the anterior border of the trapezius muscle. It is also bound by the platysma muscle and skin laterally, and by the levator scapulae (more superiorly) and scalenus muscle (more inferiorly) medially. A virtual plane at the inferior edge of the cricoid cartilage divides this group into upper, or Va, and lower, or Vb, posterior triangles.
Drainage
- These nodal groups drain the efferent lymphatics from the occipital, retro-auricular, occipital, and parietal scalp nodes. It receives direct drainage from the skin of the lateral and posterior neck and shoulder, the nasopharynx, oropharynx, and thyroid gland.
Associated primary malignancies
- These nodes most often contain metastatic deposits from malignancies of the nasopharynx, oropharynx, and thyroid.

Level Vc: Lateral Supraclavicular Group

Anatomy
- This nodal group is a continuation of levels Va and Vb; it contains the lateral supraclavicular group. It is bounded superiorly by a virtual plan crossing the transverse vessels, and inferiorly by a virtual plan 2 cm superior to the sternoclavicular join. It is also bounded anteriorly by the skin and posteriorly by the anterior border of the trapezius muscles (more superiorly) and the serratus anterior (more inferiorly). Laterally, it is bounded by the trapezius muscle (more superiorly) and the clavicle (more inferiorly). Medially, it is bordered by the scalenus muscle and lateral edge of the SCM, and is directly adjacent to the lateral edge of level IVa.
Drainage
Associated primary malignancies

Level VI: Anterior Compartment Group

The anterior compartment contains this nodal group, which is symmetric about the anatomic midline. It is also further subdivided into the superficially-located anterior jugular nodes, or level VIa, and the deeper pre-laryngeal, pre-tracheal, and para-tracheal (recurrent laryngeal) nodes, or level VIb. Level VIa

Level VIb

Anatomy
- Level VIb is bounded superiorly by the superior edge of the thyroid cartilage and inferiorly by the superior border of the sternal manubrium. It is also bounded anteriorly by the posterior margin of the infrahyoid muscles, and posteriorly by the anterior larynx, thyroid gland, and trachea at the midline, the pre-vertebral muscles on the right, and the esophagus on the left. This group is bordered laterally by the common carotid artery and medially by the lateral aspects of the trachea and esophagus.
Drainage
- Level VIb drains the efferent lymphatics from the anterior floor of the mouth, tip of the oral tongue, lower lip, thyroid gland, glottic and supraglottic larynx, hypopharynx, and cervical esophagus.
Associated primary malignancies
- These nodes most often contain metastatic deposits from malignancies of the lower lip, oral cavity (floor of the mouth and anterior oral tongue), thyroid, glottic and subglottic larynx, the apex of the piriform sinus, and the cervical esophagus. [16][17]

Level VII: Prevertebral Compartment Group, including Levels VIIa and VIIbLevel VIIa: Retropharyngeal Nodes

Anatomy
- These nodes are contained in the retropharyngeal space. They are divided into medial and lateral subgroups. The lateral groups are bounded superiorly by the superior edge of the C1 vertebral body, or the hard palate, and inferiorly by the superior edge of the body of the hyoid bone. Anteriorly, they are bounded by the posterior edge of the superior/middle pharyngeal constrictor muscles. They are bordered posteriorly by the longus capitis and longus colli muscles, laterally by the medial edge of the internal carotid artery, and medially by a virtual line parallel to the lateral edge of the longus capitis muscle. The medial groups are approximated at the midline and not well-defined.
Drainage
- These nodes drain the efferent lymphatics from the nasopharynx, eustachian tube, and soft palate.
Associated primary malignancies
- These nodes most often contain metastatic deposits from malignancies of the nasopharynx, pharyngeal wall, and oropharynx including tonsillar fossa and soft palate.

Level VIIb: Retrostyloid Nodes

Anatomy
- These nodes are contained in the fatty space surrounding the large vessels of the neck leading to the jugular foramen. They are the superior continuation of level II. Level VIIb is bounded superiorly by the jugular foramen at the base of skull, and inferiorly by the inferior edge of the lateral process of the C1 vertebral body, the superior boundary of level II. These nodes are bounded anteriorly by the posterior edge of the prestyloid parapharyngeal space, and posteriorly by the C1 vertebral body and base of skull. Finally, they are bordered laterally by the styloid process and deep parotid lobe, and medially by the medial edge of the internal carotid artery.
Drainage
Associated primary malignancies
- These nodes most often contain metastatic deposits from malignancies of the nasopharynx and anywhere in the head and neck resulting in significant infiltration of upper-level II nodes causing via retrograde flow.

Level VIII: Parotid Group

Anatomy
- This group includes the subcutaneous pre-auricular, superficial and deep intraparotid, and subparotid nodes. It is bounded superiorly by the zygomatic arch and external auditory canal, and inferiorly by the mandibular angle. This group is bounded anteriorly by the posterior edge of the mandibular ramus, the posterior edge of the masseter muscle (more laterally), and medial pterygoid muscle (medially). It is also bordered posteriorly by the anterior edge of the SCM (more laterally) and posterior belly of the digastric muscle (more medially). These nodes are bordered laterally by superficial muscular aponeurotic system (SMAS) layer within the subcutaneous tissues, and medially by the styloid process and muscle.
Drainage
- These nodes drain the efferent lymphatics from the frontal and temporal skin, eyelids, conjunctivae, auricles, external acoustic meatus, tympanum, nasal cavities, the root of the nose, nasopharynx, and the eustachian tube.
Associated primary malignancies
- These nodes most often contain metastatic deposits from malignancies of the previously named draining structures, as well as the orbit, external auditory canal, and parotid gland.[18]

Level IX: Buccofacial group

Anatomy
- This group contains the malar and the buccofacial nodes. These are superficial nodes surrounding the facial vessels on the external surface of the buccinator muscle. It is bounded superiorly by the inferior edge of the orbit and inferiorly by the inferior border of the mandible. It is also bounded anteriorly by the SMAS layer within the subcutaneous tissue, and posteriorly by the anterior edge of the masseter muscle and the corpus adiposum buccae. The lateral border is the SMAS layer, and the medial border is the buccinator muscle.
Drainage
- These nodes drain the efferent vessels of the nose, eyelids, and cheek.
Associated primary malignancies
- These nodes most often contain metastatic deposits from malignancies of the facial skin, nose, and buccal mucosa, as well as the maxillary sinus if invading soft tissues of the cheek.

Level X: Posterior Skull Group, including Levels Xa and Xb

Level Xa: Retroauricular and Subauricular Nodes

Anatomy
- This group includes superficial nodes on the mastoid process. It is bounded superiorly by the superior edge of the external auditory canal, and inferiorly by the mastoid tip. It is also bounded anteriorly by the anterior edge of the mastoid (inferiorly) and posterior edge of the external auditory canal (superiorly), and posteriorly by the posterior edge of the SCM. This group is bordered laterally by subcutaneous tissue, and medially by the splenius capitis muscles (inferiorly) and the temporal bone (superiorly).
Drainage
- These nodes drain the efferent vessels from the posterior auricular surface, external auditory canal, and adjacent scalp.
Associated primary malignancies

Level Xb: Occipital Nodes

Anatomy
- This group is the superior and superficial continuation of level Va. It is bounded superiorly by the external occipital protuberance, and inferiorly by the superior border of level V. It is also bounded anteriorly by the posterior edge of the SCM, which is the posterior border of level Xa, and posteriorly by the anterior/lateral side of the trapezius muscle. Finally, this group is bordered laterally by subcutaneous tissues, and medially by the splenius capitis muscle.
Drainage
Associated primary malignancies

Clinical Significance

The lymphatic drainage of the head and neck is unique. Its remarkably well-delineated and characterized anatomic subgroups are closely associated with draining anatomic structure. These, in turn, are related to malignant neoplasms arising from specific anatomic structures. Intimate knowledge of this network allows the surgeon to complete an oncologically-appropriate dissection. It also helps the radiation oncologist appropriately treat elective nodal levels to reduce recurrence, and the primary care physician to guide the path to the necessary work up.

Review Questions

Access free multiple choice questions on this topic.
Comment on this article.

Figure

Lymphatic System, Cervical lymph nodes, Lymphatics of the mammary gland, Cisterna chyli, Lumbar lymph nodes, Pelvic lymph nodes, Lymphatics of the lower limb, Thoracic duct, Thymus, Axillary lymph nodes, Spleen, Lymphatics of the upper limb, Inguinal (more…)

Figure

Lymph nodes of the neck; Posterior view, Afferent vessel to deep cervical glands, Afferent vessels of retropharyngeal glands, Retropharyngeal glands, Glandular nodule, Gland of deep cervical chain, Efferent vessels of retropharyngeal glands. Contributed (more…)

Figure

Lymph nodes of the arm, Deltoid pectoral glands, Axillary glands, Supratrochlear gland. Contributed by Gray’s anatomy Plates

Figure

Mediastinal lymph nodes. Image courtesy S Bhimji MD

Figure

Station for cervical lymph nodes. Contributed by Shekhar Gogna MD

References

1.: Grégoire V, Ang K, Budach W, Grau C, Hamoir M, Langendijk JA, Lee A, Le QT, Maingon P, Nutting C, O’Sullivan B, Porceddu SV, Lengele B. Delineation of the neck node levels for head and neck tumors: a 2013 update. DAHANCA, EORTC, HKNPCSG, NCIC CTG, NCRI, RTOG, TROG consensus guidelines. Radiother Oncol. 2014 Jan;110(1):172-81. [PubMed: 24183870]
2.: Biau J, Lapeyre M, Troussier I, Budach W, Giralt J, Grau C, Kazmierska J, Langendijk JA, Ozsahin M, O’Sullivan B, Bourhis J, Grégoire V. Selection of lymph node target volumes for definitive head and neck radiation therapy: a 2019 Update. Radiother Oncol. 2019 May;134:1-9. [PubMed: 31005201]
3.: Chone CT, Crespo AN, Rezende AS, Carvalho DS, Altemani A. Neck lymph node metastases to the posterior triangle apex: evaluation of clinical and histopathological risk factors. Head Neck. 2000 Sep;22(6):564-71. [PubMed: 10941157]
4.: Lindberg R. Distribution of cervical lymph node metastases from squamous cell carcinoma of the upper respiratory and digestive tracts. Cancer. 1972 Jun;29(6):1446-9. [PubMed: 5031238]
5.: Vauterin TJ, Veness MJ, Morgan GJ, Poulsen MG, O’Brien CJ. Patterns of lymph node spread of cutaneous squamous cell carcinoma of the head and neck. Head Neck. 2006 Sep;28(9):785-91. [PubMed: 16783833]
6.: Ishikawa M, Anzai Y. MR imaging of lymph nodes in the head and neck. Neuroimaging Clin N Am. 2004 Nov;14(4):679-94. [PubMed: 15489148]
7.: Ho FC, Tham IW, Earnest A, Lee KM, Lu JJ. Patterns of regional lymph node metastasis of nasopharyngeal carcinoma: a meta-analysis of clinical evidence. BMC Cancer. 2012 Mar 21;12:98. [PMC free article: PMC3353248] [PubMed: 22433671]
8.: Candela FC, Kothari K, Shah JP. Patterns of cervical node metastases from squamous carcinoma of the oropharynx and hypopharynx. Head Neck. 1990 May-Jun;12(3):197-203. [PubMed: 2358329]
9.: Candela FC, Shah J, Jaques DP, Shah JP. Patterns of cervical node metastases from squamous carcinoma of the larynx. Arch Otolaryngol Head Neck Surg. 1990 Apr;116(4):432-5. [PubMed: 2317325]
10.: Hicks WL, Kollmorgen DR, Kuriakose MA, Orner J, Bakamjian VY, Winston J, Loree TR. Patterns of nodal metastasis and surgical management of the neck in supraglottic laryngeal carcinoma. Otolaryngol Head Neck Surg. 1999 Jul;121(1):57-61. [PubMed: 10388879]
11.: Shah JP, Candela FC, Poddar AK. The patterns of cervical lymph node metastases from squamous carcinoma of the oral cavity. Cancer. 1990 Jul 01;66(1):109-13. [PubMed: 2354399]
12.: Montero PH, Patel SG. Cancer of the oral cavity. Surg Oncol Clin N Am. 2015 Jul;24(3):491-508. [PMC free article: PMC5018209] [PubMed: 25979396]
13.: Farmer RW, McCall L, Civantos FJ, Myers JN, Yarbrough WG, Murphy B, O’Leary M, Zitsch R, Siegel BA. Lymphatic drainage patterns in oral squamous cell carcinoma: findings of the ACOSOG Z0360 (Alliance) study. Otolaryngol Head Neck Surg. 2015 Apr;152(4):673-7. [PMC free article: PMC4399646] [PubMed: 25749001]
14.: Woolgar JA. Histological distribution of cervical lymph node metastases from intraoral/oropharyngeal squamous cell carcinomas. Br J Oral Maxillofac Surg. 1999 Jun;37(3):175-80. [PubMed: 10454023]
15.: Shah JP. Patterns of cervical lymph node metastasis from squamous carcinomas of the upper aerodigestive tract. Am J Surg. 1990 Oct;160(4):405-9. [PubMed: 2221244]
16.: Chung EJ, Kim GW, Cho BK, Park HS, Rho YS. Pattern of lymph node metastasis in hypopharyngeal squamous cell carcinoma and indications for level VI lymph node dissection. Head Neck. 2016 Apr;38 Suppl 1:E1969-73. [PubMed: 26835610]
17.: Chung EJ, Lee SH, Baek SH, Park IS, Cho SJ, Rho YS. Pattern of cervical lymph node metastasis in medial wall pyriform sinus carcinoma. Laryngoscope. 2014 Apr;124(4):882-7. [PubMed: 23832757]
18.: Chisholm EJ, Elmiyeh B, Dwivedi RC, Fisher C, Thway K, Kerawala C, Clarke PM, Rhys-Evans PH. Anatomic distribution of cervical lymph node spread in parotid carcinoma. Head Neck. 2011 Apr;33(4):513-5. [PubMed: 20652975]

: Disclosure: Antony Koroulakis declares no relevant financial relationships with ineligible companies.
: Disclosure: Zohaib Jamal declares no relevant financial relationships with ineligible companies.
: Disclosure: Manuj Agarwal declares no relevant financial relationships with ineligible companies.

This book is distributed under the terms of the Creative Commons Attribution-NonCommercial-NoDerivatives 4. 0 International (CC BY-NC-ND 4.0)
(
http://creativecommons.org/licenses/by-nc-nd/4.0/
), which permits others to distribute the work, provided that the article is not altered or used commercially. You are not required to obtain permission to distribute this article, provided that you credit the author and journal.

Bookshelf ID: NBK513317PMID: 30020689
